Airplane Configuration & Parts

By /

Understanding an airplane’s configuration and its major parts is essential in flight mechanics. Aircraft are designed to achieve a balance between aerodynamic efficiency, stability, control, structural strength, and mission requirements.

1. Airplane Configuration Types

Airplane configuration refers to the overall arrangement of its major components.

1.1 Conventional Configuration

  • The most common arrangement.
  • Features a main wing, tail (horizontal and vertical stabilizers), fuselage, and engines (mounted on wings or fuselage).
  • The horizontal tail provides longitudinal stability.

1.2 Canard Configuration

  • Small forewing (canard) located ahead of the main wing.
  • Canards provide lift and pitch control.
  • Reduces the need for a large tail and can improve aerodynamic efficiency.

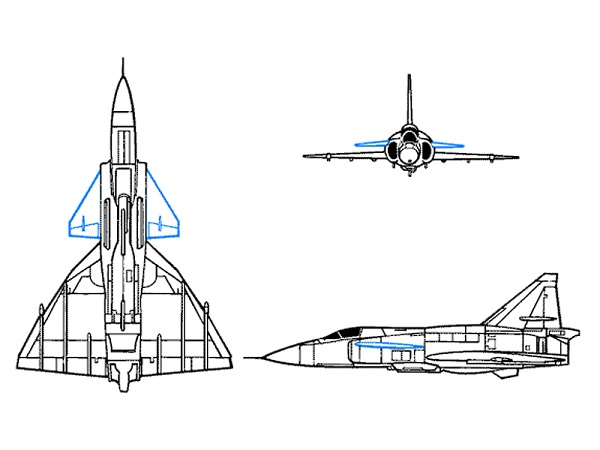

Saab Viggen drawlines with blue colored canards

1.3 Tailless and Flying Wing

  • No distinct tail surfaces.
  • Control surfaces integrated into the wing itself.
  • Examples: Northrop B-2 Spirit (flying wing design).

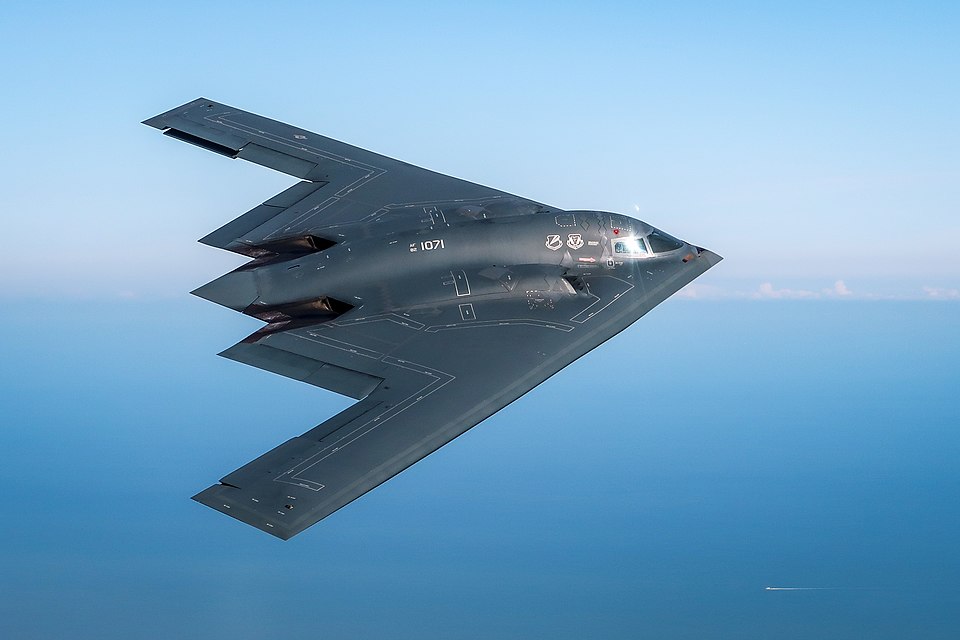

Northrop B-2 Spirit (Image by Royal Air Force)

1.4 Tandem Wing

  • Two main wings arranged one behind the other.
  • Both wings provide lift.
  • Less common but used in some light aircraft and UAV designs.

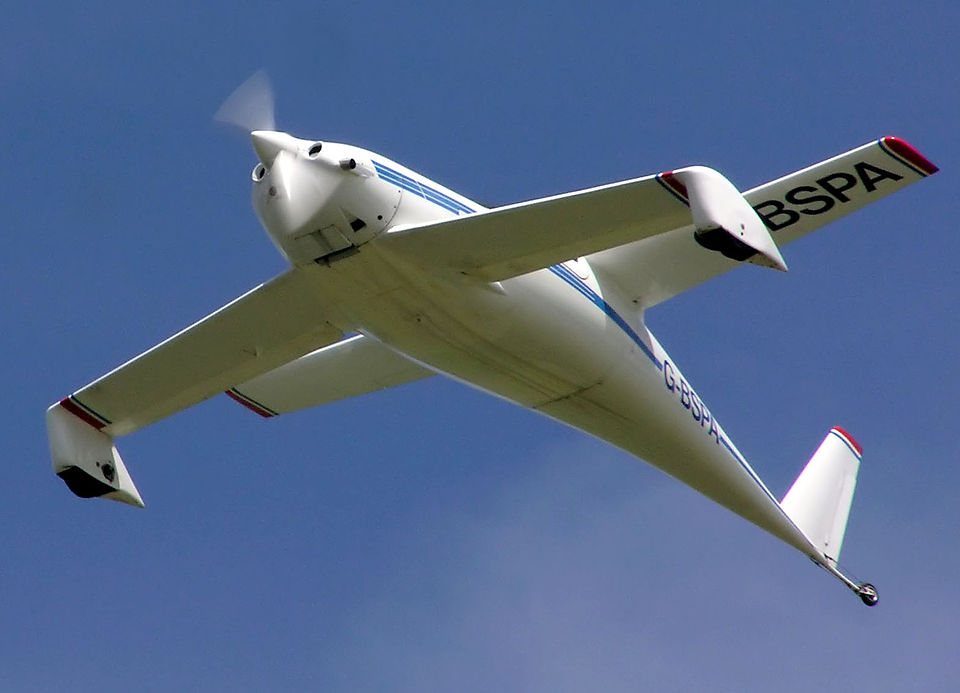

QAC Quickie Q2 with Tandem Wings

1.5 Variable Geometry

  • Wings that change sweep angle in flight.
  • Optimizes performance for different speeds.
  • Example: F-14 Tomcat.

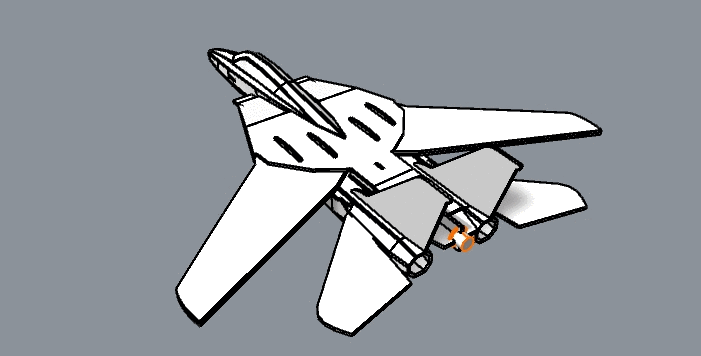

F-14 Tomcat with variable geometry wings

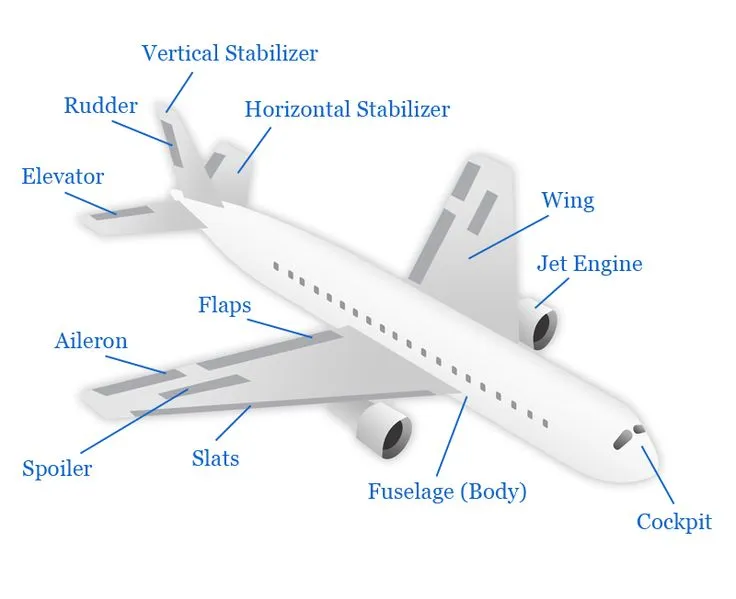

2. Major Parts of an Airplane

An airplane consists of several primary structural and functional components, each with a specific purpose.

2.1 Fuselage

  • The central body of the aircraft.
  • Houses crew, passengers, cargo, avionics, and fuel in some designs.
  • Structural backbone connecting the wings and empennage.

2.2 Wing

  • Primary lift-producing surfaces.
  • May have high-wing or low-wing configurations.
  • Equipped with control surfaces like ailerons and flaps.
  • Airfoil shape generates lift via pressure differences.

L = \frac{1}{2} \rho V^2 S C_L

Where:

  • L = Lift force
  • \rho = Air density
  • V = Airspeed
  • S = Wing area
  • C_L = Coefficient of lift

2.3 Empennage (Tail Assembly)

  • Provides stability and control.
  • Consists of:
    • Horizontal Stabilizer: Controls pitch.
    • Elevator: Movable surface for pitch control.
    • Vertical Stabilizer: Controls yaw.
    • Rudder: Movable surface for yaw control.

2.4 Landing Gear

  • Supports the aircraft on the ground.
  • May be fixed or retractable.
  • Configurations: tricycle gear (nose wheel) or tail-dragger.
  • Absorbs landing impact and enables ground movement.

2.5 Powerplant

  • Provides thrust for flight.
  • Types include:
    • Piston engines with propellers.
    • Turbojet, turbofan, turboprop, turboshaft engines.
  • Location varies: nose-mounted, wing-mounted, tail-mounted.

2.6 Control Surfaces

  • Essential for maneuvering:
    • Ailerons: Roll control (differential deflection on wings).
    • Elevators: Pitch control (on horizontal stabilizer).
    • Rudder: Yaw control (on vertical stabilizer).
    • Flaps: Increase lift at low speeds.
    • Slats: Delay stall at high angles of attack.
    • Spoilers: Reduce lift and increase drag.

2.7 High-Lift Devices

  • Improve takeoff and landing performance.
  • Include flaps, slats, Krueger flaps, and leading-edge extensions.
  • Modify wing camber and area.

3. Secondary Components and Systems

3.1 Avionics

  • Navigation, communication, autopilot, flight management systems.

3.2 Fuel System

  • Stores and delivers fuel to engines.
  • Includes tanks, pumps, and lines.

3.3 Electrical System

  • Powers avionics, lighting, actuators.

3.4 Environmental Control

  • Pressurization, air conditioning, de-icing.

4. Summary

Airplane configuration and parts are designed to meet performance, safety, and mission requirements. A well-balanced design ensures stability, controllability, structural integrity, and efficiency in flight.
